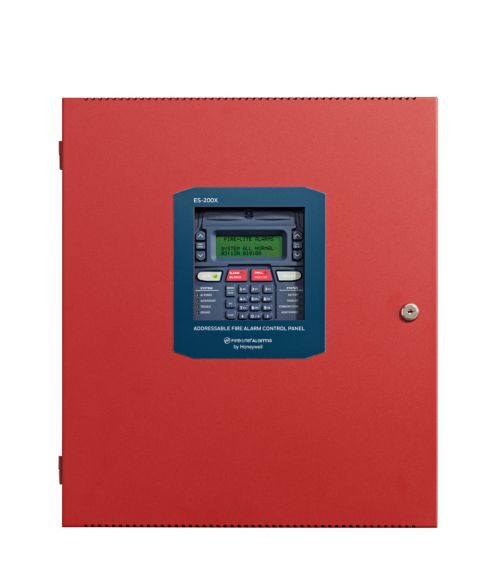

Fire-Lite ES-200X Addressable Fire Alarm Control Panel with Communicator

Fire-Lite ES-200X Addressable Fire Alarm Control Panel with Communicator

The Fire-Lite ES-200X is an addressable fire alarm control panel designed for commercial fire-protection applications that require flexible device capacity, integrated communications and straightforward programming. The panel supports up to 198 addressable devices total, including up to 99 detectors and 99 modules, and includes a pre-installed IPOTS-COM dual-technology communicator for IP and POTS reporting.

Key Features

• Supports up to 198 addressable devices
• Up to 99 addressable detectors and 99 addressable modules
• Pre-installed IPOTS-COM communicator
• IP and POTS central-station communication capability
• Optional cellular reporting capability
• Compatible with Fire-Lite SWIFT wireless devices
• Four independently programmable NACs
• Style Z (Class A) or Style Y (Class B) NAC operation
• Selectable strobe synchronization for System Sensor, Wheelock and Gentex devices
• Two programmable relays plus one fixed trouble relay
• Integral 80-character backlit LCD
• Built-in programmer
• Auto-programming / learn mode
• Remote or local programming with FS-Tools
• USB and Ethernet programming support

Integrated Communications

The ES-200X includes the Fire-Lite IPOTS-COM dual-technology communicator. This provides IP monitoring capability while retaining POTS support for applications that require or prefer telephone-line communication. The panel can transmit alarm, trouble, supervisory and other system status signals to a compatible central station.

Commercial Fire Alarm Applications

The ES-200X is well suited for small to mid-sized commercial facilities that need an addressable fire alarm system with room for future expansion. Typical applications include offices, retail buildings, restaurants, schools, medical offices, warehouses and other commercial occupancies where addressable detection, notification and central-station reporting are required.

Fire Alarm Installation & Service in Austin, Texas

Avenger Security Services / Security Tekton designs, installs, services, monitors and inspects commercial fire alarm systems throughout Austin, Round Rock, Georgetown, Cedar Park, Pflugerville and Central Texas. We support Fire-Lite addressable systems, communicator upgrades, monitoring takeovers, device replacement and code-compliance service.

Manufacturer: Fire-Lite / Honeywell
Model: ES-200X
Type: Addressable Fire Alarm Control Panel
Addressable Capacity: Up to 198 devices
Detectors: Up to 99
Modules: Up to 99
Communicator: Pre-installed IPOTS-COM
NACs: 4 programmable circuits
Display: 80-character backlit LCD
Listing: UL 864, 10th Edition

Local service and installation support

Discuss panel selection, system compatibility, project plans and local installation requirements. Commercial Fire Alarm Installation in Austin.
