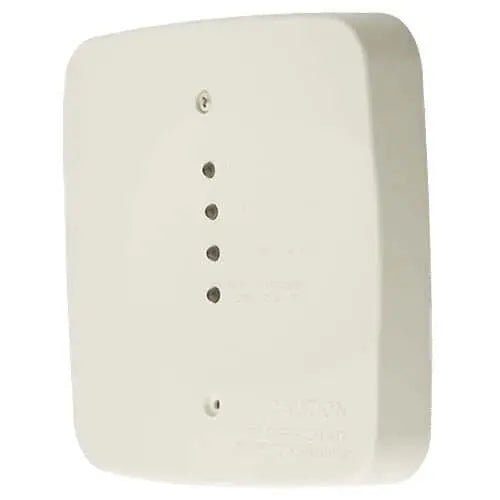

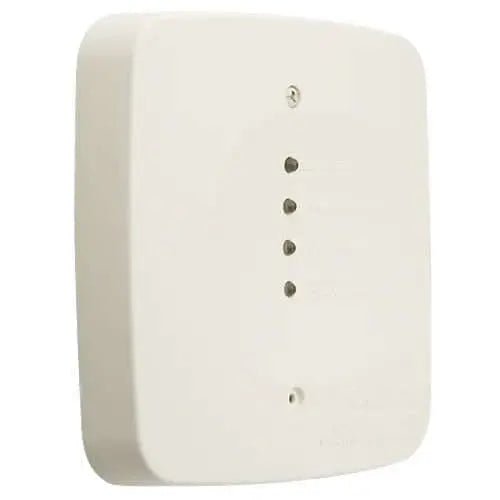

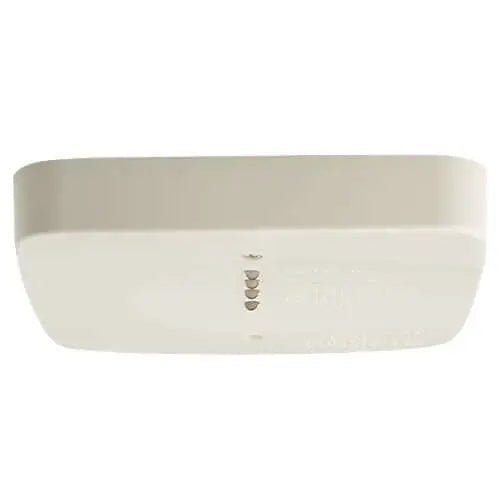

System Sensor COSMOD4W 4-Wire Smoke/CO Interface Module

The System Sensor COSMOD4W is the interface module for compatible four-wire i4 smoke and carbon-monoxide detectors. It interprets detector signals and provides separate smoke and CO outputs, with an optional trouble output, to a compatible control panel.

Key features

• Designed for COSMO-4W detectors and listed compatible four-wire devices
• Separates smoke and CO alarm reporting
• Supports an optional trouble-reporting circuit
• Connects compatible detectors to two or three panel zones
• Supports up to 12 compatible detectors when installed within listed limits

Important compatibility notes

This module is not a smoke or CO detector and cannot operate as a standalone life-safety device. Use only the listed four-wire detector combinations; do not connect COSMO-2W devices. Panel zones, end-of-line supervision, power, reset operation and notification behavior must be engineered and tested as a complete system. Contact Avenger Security to confirm availability.

Professional fire and life-safety support in Texas

Detector selection must match the listed control panel, initiating circuit, interface module, wiring method, power supply and local code requirements. Avenger Security provides licensed system design, installation, testing and service throughout Austin, Central Texas and statewide. New clients considering new service can request a no-cost onsite visit and up to one hour of initial consultation. Existing troubleshooting, diagnostics and repair are billable services.
