Altronix SMP3 Power Supply

Altronix SMP3 Power Supply Charger 16VAC to 28VAC

Highly Recommended Power Supply - Comes with Lifetime Warranty by Altronix

Installation Manual/Instructions -Click Here

Designed to adapt to varying power requirements, the Altronix SMP3 accommodates 6VDC, 12VDC, and 24VDC applications, making it a versatile choice for diverse security setups. Its distinctive feature is its powerful 2.5 amp supply current that guarantees a stable energy flow to your access control devices.

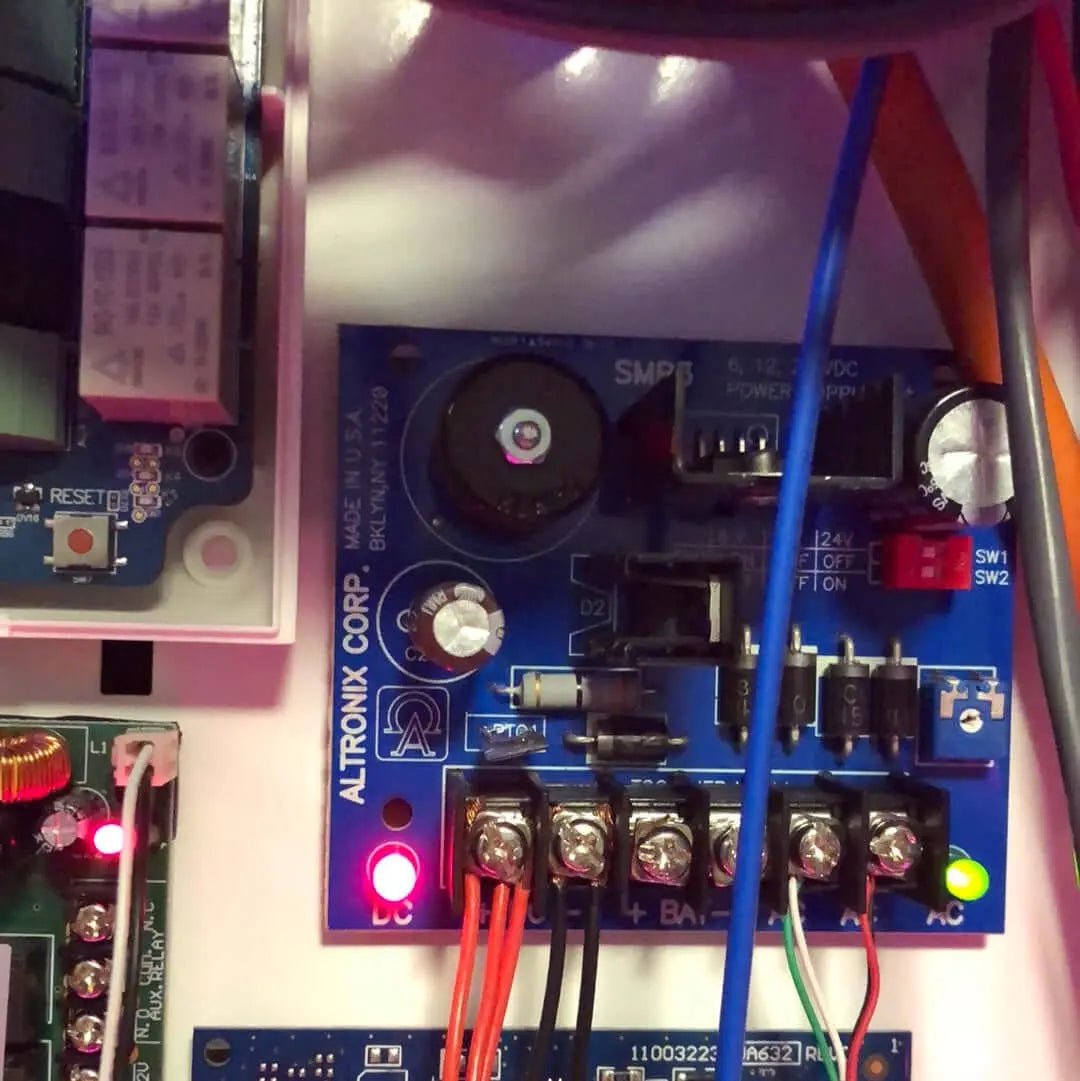

Avenger Security has never had this power supply fail in security configuration.

The best low voltage power supply that can be used for almost anything.

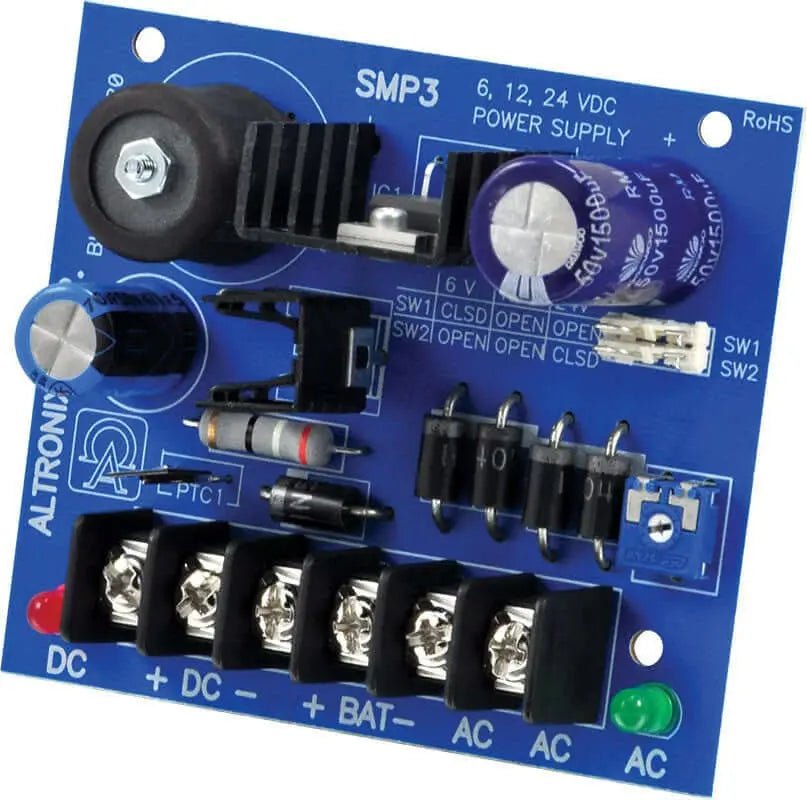

Altronix SMP3 Power Supply Charger, Single Output, 6/12/24VDC @ 2.5A, 24/28VAC, Board.

Altronix SMP3 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Input 16VAC to 28VAC. Output 6VDC, 12VDC or 24VDC selectable output.
2.5A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Backup Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Battery short circuit protection (circuit breaker).
Visual Indicators for AC input and DC output LED indicators.
Operating Temperature: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 6VDC: 8 BTU/Hr. 12VDC: 15 BTU/Hr. 24VDC: 31 BTU/Hr.
System AC input VA requirement: 6VDC/12VDC: 55.2VA. 24VDC: 115VA.
Extremely compact design. Includes battery leads.
Snap Track compatible (order Altronix model number ST3).
Dimensions (approximate):
3 W x 3.5 L x 2 H Inches (76.2 mm W x 88.9 mm L x 50.8 mm H).
Weights (approximate):Product Weight: 0.25 Lbs. (0.113 kg). |Shipping Weight: 0.35 Lbs. (0.158 kg).
