Brivo control panels act as the interface cloud services and local devices.
Brivo ACS6100 Control Panels are key components of your Brivo access control platform.
The ACS6100 Control Panels support the existing ACS6000 main boards along with the ACS6100 Door and I/O expansion boards.
The ACS 6100 has increased capacity for Door and I/O boards
Supporting up to 14 boards linked on CAN BUS:
- Brivo Smart Readers as well as OSDP and Weigand readers
- Remote firmware updates
- Maximum of 30 card readers per control panel
- Brivo Mobile Pass
- Select Brivo wireless lock integrations
Host communication via ethernet or WiFi. Cellular options available upon request
Host authentication via digital certificates
- IP based access control and alarms
- Modular growth via expansion boards
- Encrypted storage and communications

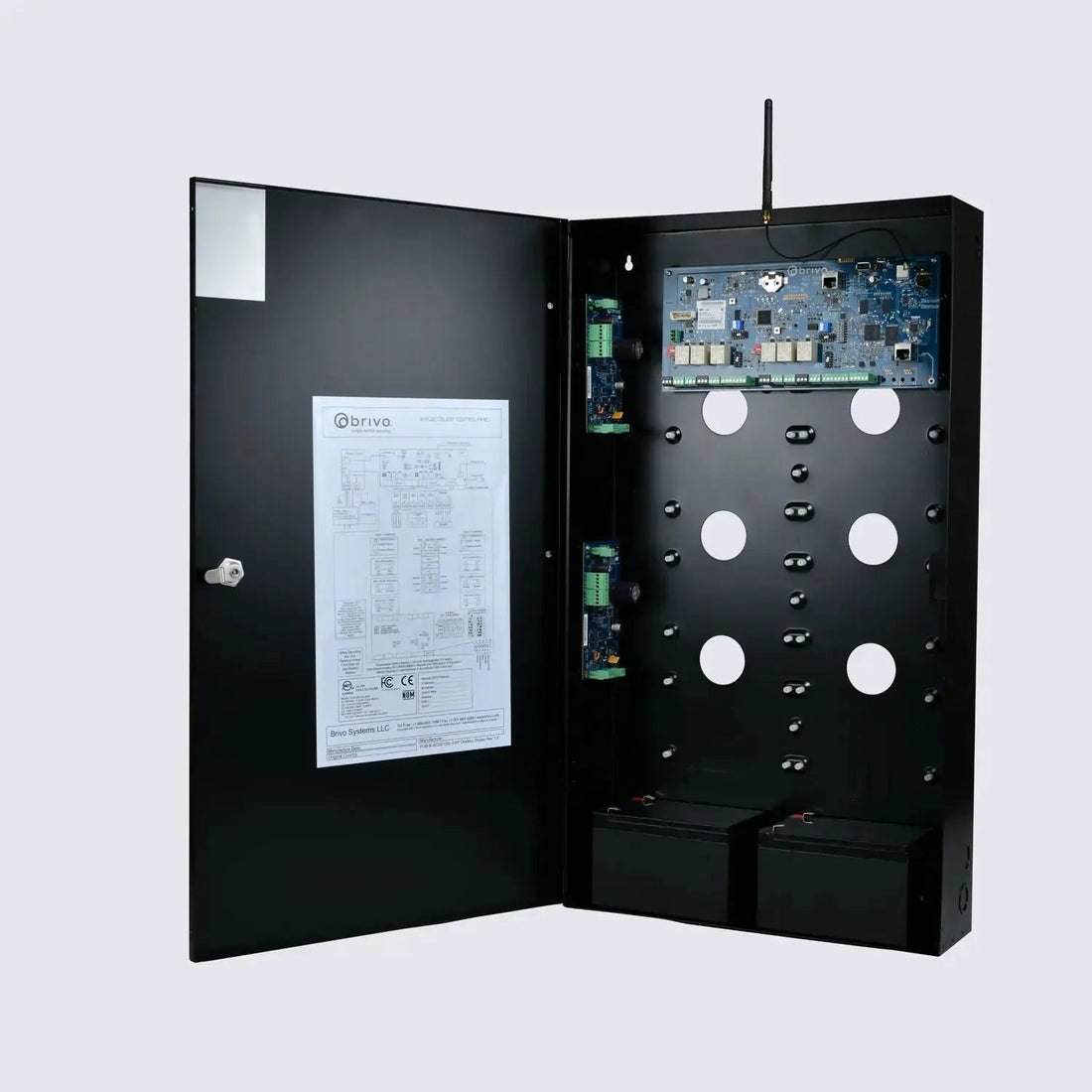

Brivo B-ACS6100R-E Regular Panel
Includes regular chassis, main board, power supply board, battery, and transformer. This chassis will accommodate two additional accessory boards.
Brivo B-ACS6100L-E Large Panel
Includes large chassis, main board, two power supply boards, two batteries, and two transformers. This chassis will accommodate six additional accessory boards.
B-ACS6100-DB - Two-reader Door Expansion Boards
B-ACS6100-IO - Input/Output Expansion Boards
B-ACS6100-PSB - Power Supply Boards
B-ACS6100-ADPL - Adapter Plate for installation of B-ACS6100-DB or B-ACS6100-IO in ACS6000/6008 series cabinets.
B-ACS6100R-EXP - Brivo ACS6100 Regular Expansion Chassis
B-ACS6100L-EXP - Brivo ACS6100 Large Expansion Chassis
B-ACS6000-MBE - Two-reader Main Board for Brivo Access
